Foldable

Readings

Parametric Type : t a

  • Target type : a
  • Context type : t

Intuition based on Algebraic Data Type

This section needs more theoretical backup.
Jump to Intuition for Real World Implementation for recap.

instance declaration Context type define
instance Foldable Tree in ‘Data.Tree’
instance Foldable [] in ‘Data.Foldable’
instance Foldable Maybe in ‘Data.Foldable’
instance Foldable (Either a) in ‘Data.Foldable’
instance Foldable ((,) a) in ‘Data.Foldable’

It’s all about foldMap

  • When parametric type t a represents some data structure. One or more value of target type a could be contained in this data structure t a.

  • foldMap is about two operations:

    • a. Replace Target Type a with a Monoidal type m.

    • b. Aggregate values of type m with <>, if there are many values of m.

      typeClass Foldable  t where
...
foldMap :: Monoid m => (a -> m) -> t a -> m
...

1.Only one value of Target Type a in t a.

  • Because there is only one value of type a:

    • Step b is not necessary in this case.
    • Just guarantee replacing the target type a with a monoidal type m and other information with mempty ( in Sum type :: |) or simply being ignored ( in Product type :: (,)).

  • Sum Type:

    • Maybe:

      instance Foldable Maybe where
   foldMap = maybe mempty
   ...

maybe :: b -> (a -> b) -> Maybe a -> b   -- Defined in ‘Data.Maybe’

    • Either a:

      instance Foldable (Either a) where
   foldMap _ (Left _) = mempty
   foldMap f (Right y) = f y
   ...

  • Product Type:

    • (,) a:

      instance Foldable ((,) a) where
   foldMap f (_, y) = f y
   ...

2.More values of Target type a in t a.

This is the main part of this doc.

If there is more than one value of the target type in the data structure, they must be organized based on the Product of Target type a. Two most used examples:

  • List

       List a == f a  = 1 + a * f a
                  = 1 + a * (1 + a * (1 + a * (1 + a*(1 + a * ...))))
                  = 1 + a + a*a + a*a*a + ... + a*a*....

  • Tree

        Equation One: List a == f a = 1 + a * f a
    Equation Two: Tree a == T a = a * List (T a)

    Replace `a` in  with `T a` in `Equation One` and put it back to `Equation Two`, then:

        Tree a == T a = a * List (T a)
                  = a * (1 + (T a) + (T a)^2 + ... + (T a)^n)
                  = a + a * (T a) + a * (T a)^2 + ...+ a * (T a)^n

So we know:

  • Type List a: 1 means a data structure contains No information of a. a means one value of type a. a*a means two values of type a, etc.
    • + means or.
    • a * a equivalent to cartesian product of set a and a.
  • Type Tree a: at least one piece of information of type a, or a and possible one or more trees (T a)^n.
    • Evaluate the definition of Tree a till there is no T a left, we can see that Tree a = a + a*a + a*a*a + ... + a*a*....
    • The expansion of Tree a is quite similar with the expansion of List a = 1+a+a*a+....
  1. Step a of foldMap replace a with m, we have: List a = 1 + a + ... + a*a*... -> 1 + m + ... + m*m*... Tree a = a + a*a + ... + a*a*... -> m + m*m + ... + m*m*...

  2. Step b of foldMap. A product m*m*m needs to be

    1. Aggregated with '<>'.
    2. Aggregated with '<>'.
    3. Aggregated with '<>'.

    means replace * of product type with <>.
    Now:
    (Monoid m) => m * m * m == m <> m <> m.

The computation foldMap f List are essentially the same as foldMap f Tree, except:

  1. When List could be empty, then: foldMap f List = mempty.
  2. T cannot be empty, it must contains at least one value of type a, it is equivalent to a List of only one element. In this case foldMap f L = foldMap f T = m

Summary

  • List and Tree as instances of Foldable are equivalent up to the definition of foldMap (except for foldMap over empty list). More generally speaking, all combination of Sum type and Product Type are essentially the same as instances of Foldable.
  • This make sense, because a typeclass reflects only one particular aspect of a given type. In other words, it defines some common property of many types which may contains more information but could be ignored when being treated as a instance of this typeclass.

  • FoldMap does not utilize structure information of the Parametric Type. It simply:

    1. replace target type a with a monoid type m.
    2. When there is only one value of a, replace a with m and others with memtpy.
    3. When there are more values of a, replace * with <>. (Whatever data structure it is).

  • foldr

    foldMap :: (Monoid m) => (a -> m) -> t a -> m

    replace m with b -> b, we have

    aha :: (a -> b -> b) -> t a -> b -> b

Function type b -> b is defined as an instance of Monoid in Data.Semigroup.Internal. Wrapped by newtype Endo.

So wrap b -> b with Endo newtype and rearrange type signature of aha we have:

  class Foldable (t :: * -> *) where
    ...
    foldr :: (a -> b -> b) -> b -> t a -> b
    foldr f z t = appEndo (foldMap (Endo . f) t) z
    ...

  1. appEndo (foldMap (Endo . f) t)

    1. Replace ever a in t with a wrapped function b -> b
    2. Compose these functions together to have one function of type b -> b. newtype Endo a = Endo {appEndo :: a -> a}
    3. The type of function composition is Prelude GHC.Base Control.Monad> :info (.) (.) :: (b -> c) -> (a -> b) -> a -> c -- Defined in ‘GHC.Base’ This means the first element of t a that starts affect the value of b is the right most element, then the one next to it. This is what the r in foldr means.

  2. Then apply this function of type b -> b on z to get the final output b.

  3. Because a parametric type t a can be rewrite into a*a*a*a when being treated as an instance of Foldable. So a list is just:

    • foldr (:) [] [1,2,3,4] - [1,2,3,4], (1,2,3,4) contains the same amount of information. - Replace as described above will get (1:(2:(3:(4:[])))). It could also be written as (Con 1 (Con 2 (Con 3 (Con 4 [])))) - [] is the List type terminator of type [].

  4. foldr can be used to define foldMap as well. ``` foldMap :: Monoid m => (a -> m) -> t a -> m foldMap f = foldr (mappend . f) mempty

    foldr :: (a -> b -> b) -> b -> t a -> b
foldr f z t = appEndo (foldMap (Endo #. f) t) z
```

```
foldr definition for List as the instance of Foldable:

foldr k z = go
      where
        go []     = z
        go (y:ys) = y `k` go ys
```

    Intuition for Real World Implementation

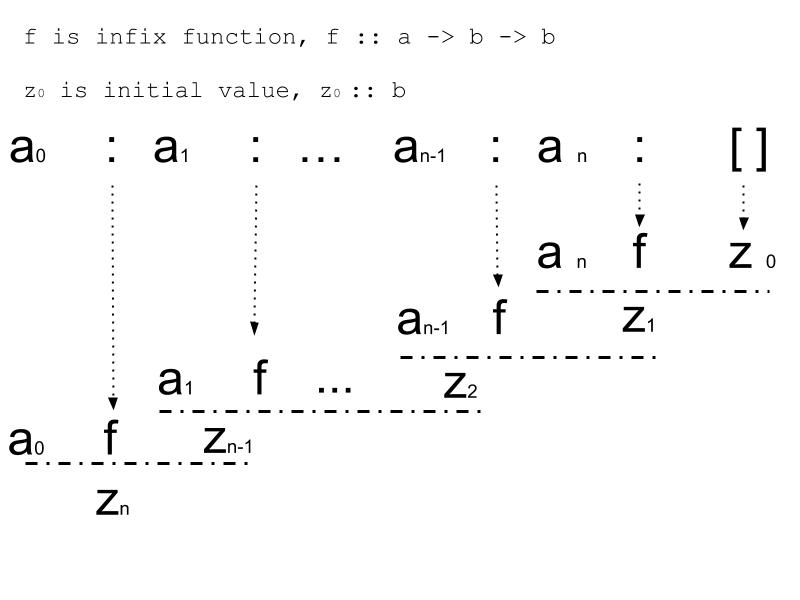

  5. foldr intuition for List

    • Replace Con with f.
      • Or replace : with f (if f is an infix function).

    • Replace Nil with z. foldr foldr

      l = (Con a (Con b (Con c(Con ... (Con Nil))))
foldr f z l =(f a (f b (f c(f ... (f z))))

    • Justificatoin

      • foldr (a -> b -> b) b (List a) = foldMap (a -> b -> b) (List a) $ b replace a with b -> b , replace * with <> in this case .
      • foldr f z t = (b -> b) . (b -> b) . (b -> b) $ z

      • Con :: a -> List -> List
        z = Nil
        List a = (Con a (Con a (Con a..(Con a Nil))))

      • Con a (Con a( ....)) is the composition order, therefore

      • if f:: a -> b -> b , replace Con with f and Nil with z.

      • foldr f z l =(f a (f b (f c(f ... (f z))))

  6. foldr intuition for Tree

    • Tree a and List a are equivalent to each other as instances of Foldable.
    • Therefore, foldr f z (Tree a) == foldr f z (List a), foldr over a Tree of target type a is the same as foldr over a List of target type a. The structure information of Tree disappeared.

    • Tree and List are gone. Only a*a*...*a information.

      > t1 = Node 1 []
> t2 = Node 2 []
> t3 = Node 3 []
> t4 = Node 4 []
> t5 = Node 5 [t1,t2]
> t6 = Node 6 [t3,t4]
> t7 = Node 7 [t5,t6]
> foldr (:) [] t7
    [7,5,1,2,6,3,4]
> flatten t7
    [7,5,1,2,6,3,4]

      So We could construct a List a from Tree a based on foldr using (:) to replace * and use [] to terminate aggregate function of type [] -> [].

      instance Foldable Tree where
    ...
    toList = flatten
    ...
-- > flatten (Node 1 [Node 2 [], Node 3 []]) == [1,2,3]
flatten :: Tree a -> [a]
flatten t = squish t []
    where squish (Node x ts) xs = x:Prelude.foldr squish xs ts

  7. foldr Generalized Iintuition.

    • More than one value in Parametric Type :: t a means t is or wrapping a product type a*a*...*a.
    • Being instance of Foldable means t only implies the existence of a*a...*a. All other information such as structure information of being Tree or List are irrelevant.
    • foldMap is the basic function that replace a with Monoid m; replace * with <>.
    • foldr is an extension of foldMap. It equivalent to
      • Treat t a of any type as List t.
      • Replace Con with f.
      • Replace Nil with z.
    • Values of target type a got folded.
    • Foldable includes the toList :: Foldable t => t a -> [a] method. That means any Foldable data structure can be turned into a list [haskell wikibook]

  8. Summary
    For a parametric type 't a' being an instance of Foldable means we could use foldMap or foldr to fold value(s) of target type a. So basically t a is Foldable when it is an instance of Foldable.
    Pretty self-explanatory.

Others

1. foldrM

function constraint type define import
foldrM Monad m, Foldable t (a -> b -> m b) -> b -> t a -> m b Data.Foldable Data.Foldable
foldlM Monad m, Foldable t (b -> a -> m b) -> b -> t a -> m b Data.Foldable Data.Foldable
foldM Monad m, Foldable t (b -> a -> m b) -> b -> t a -> m b Control.Monad (=foldlM) Control.Monad

Starts from foldr 1. The semantics of foldr is: - t a is a collection of elements with the same type a. - a function f of type a -> b -> b - a single element of type b. - foldr :: (Foldable t) => (a -> b -> b) -> b -> t a -> b:
> each element of t a contribute a piece of information to a element of type b through function f. - Foldable treat all structure t equally as a List. - foldr replaces component of List a. It replaces Con or : with f, and [] with z.

  1. The semantics of foldrM:

  • The type of foldrM is : (Monad m, Foldable t) => (a -> b -> m b ) -> b -> t a -> m b It means we have:

    1. a function: f :: ( a -> b -> m b)
    2. a List or Tree: xs :: t a
    3. an initial value: z :: b
    4. provide all 3 above we get a r :: m b

  • 1 step further: map f over xs. f <$> xs get a list of type : [(b -> m b), ( b -> m b) ..., (b -> m b)]

    • 2 step further: now the type is : t (b -> m b) -> ( b -> m b) it is basically turn [(b -> m b), ( b -> m b) ..., (b -> m b)] to b -> m b Semantics of foldM: bind these monadic computation together.

    • 3 step further: HOW we have (b -> m b) : (b -> m b) : ... : (b -> m b) : [] > Option A: > Replace : with =<< , [] with m b > we have (b -> m b) =<< (b -> m b) =<< ... =<< ( b-> m b) =<< m b > In this case: >>foldrM f z xs = foldr (=<<) (pure z) (f <$> xs) > > Option B: > Replace : with <=<, [] with b -> m b > we have (b -> m b) <=< (b -> m b) <=< ... <=< ( b-> m b) <=< (b -> m b) > In this case: > >foldrM f z xs = foldr (<=<) pure (f <$> xs) $ z

Example:

*>import Control.Monad.Trans.Writer    -- Use Wirter Monad in this example.
*>import Control.Monad                 -- import (<=<)
*>import Data.Foldable                 -- import foldr, foldrM, etc.

*>:{
*|wf a b = do
*|        tell $ show b             -- introduce String type log
*|        return $ a * b            -- target computation a*b.
*|:}
*>:info wf
*w :: (Monad m, Show b, Num b) => b -> b -> WriterT String m b

*>let tl = [1,2,3,4]
*>let z = 1

*>r1 <- runWriterT $ foldrM wf z tl
*>r1
*(4,"141224")

*>let r2 = foldr (=<<) (pure z) $ wf <$> tl
*>rr2 <- runWriterT r2
*>rr2
*(4,"141224")

*>let r3 = foldr (<=<) pure (wf <$> tl) $ z
*>rr3 <- runWriterT r3
*>rr3
(24,"141224")

foldrM Summary

  • foldrM :: (Foldable t, Monad m) => ( a -> b -> m b ) -> b -> t a -> m b
  • foldrM transform value of type a in List a to a monadic computation b -> m b > each element of t a contribute a piece of information to the computation b -> m b.
  • then, these computataion of type b -> m b bind together from right to left.
  • With a initial value z of type b, we get the result of type m b.

TODO:

  1. Why is this flatten in Data.Tree better than foldr version above.

  2. How to rewrite foldM(foldlM) in the form of foldr + fmap > The official definition of foldlM and foldrM is hard to understand.

    *> let pl = foldM wf 1 tl
*> l <- runWriterT pl
*> l
(24,"1234")

    Try combine the answer in stackoverflow to get an intuitive understanding.

  3. Intuition about all examples in youtube ConfEngine
